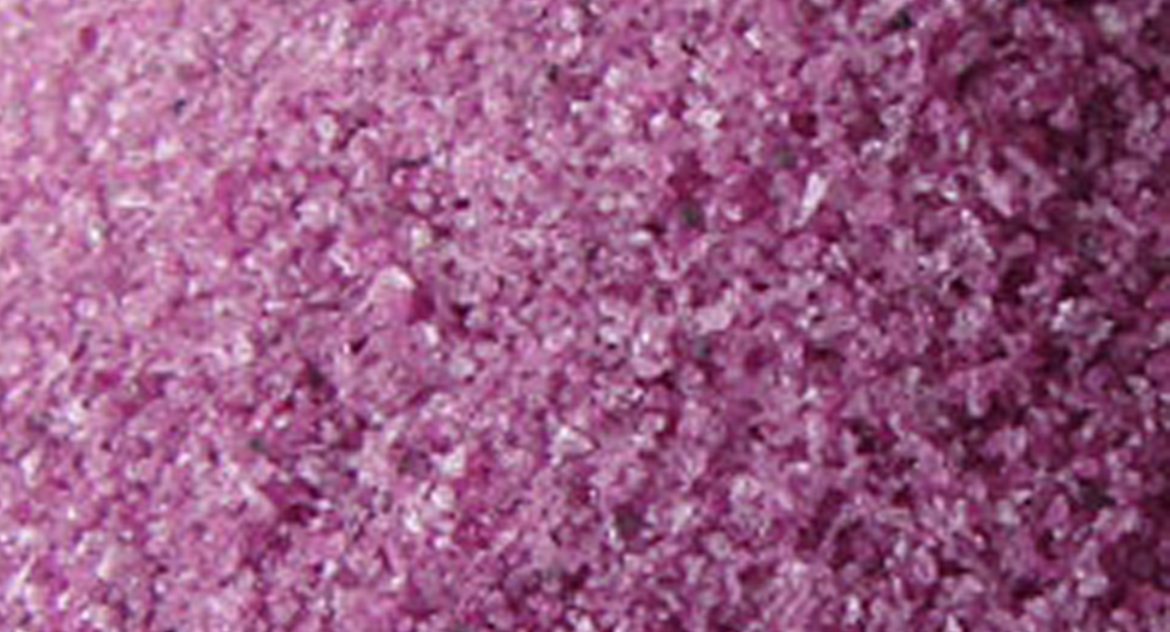

Pink Fused Alumina
Description
Pink Fused Alumina is produced by fusion of Calcined Alumina with addition of Chromium Oxide. The colour of the final product as well as the toughness of the grain depends on the amount of chromium added during fusion. With increased addition of Chromium, the toughness of the grain increases and friability reduces compared with White Fused Alumina.
Applications
Pink Fused Alumina are especially suitable for making Vitrified wheels and abrasives for hardened steels and alloys. It is also used in tool grinding, precision grinding, profile grinding, flute grinding, tooth grinding and mounted wheels.
Packing
In 25kg plastic woven bags; In 1000kg big bags, 40 x 25kg plastic woven bags into one big bags, 40 x 25kg plastic woven bags on pallets, 40 x 25kg paper bags on pallets, According to client’s requirement.
Chemical composition
| Low Chromium | Medium Chromium | High chromium | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Grit Size range | Al2O3 % | Cr2O3 % | Na2O % | Al2O3 % | Cr2O3 % | Na2O % | Al2O3 % | Cr2O3 % | Na2O % |
| F12~F80 | ≥ 98.5 | ≥ 0.50 | ≥ 98.20 | >0.45~ 1.00 | ≥ 0.55 | ≥ 97.40 | > 1.00~ 2.00 | ≥ 0.55 | |
| F90~F150 | ≥ 98.50 | 0.20 ~0.45 | ≥ 0.55 | ≥ 98.20 | ≥ 0.60 | ≥ 97.00 | ≥ 0.60 | ||
| F180~F220 | ≥ 98.90 | ≥ 0.60 | ≥ 97.80 | ≥ 0.70 | ≥ 96.50 | ≥ 0.70 | |||
Physical property
| Basic Minerals | Crystal Size um | Ture density g/cm3 | Bulk Density g/cm3 | Knoop Hardness Kg/mm2 |
| a-Al2O3 | 600-2000 | ≥3.90 | 1.40~1.91 | 2200~2300 |
Macrogrit Sizes
FEPA F Sizes F14 to F240 (in accordance with FEPA 42-1: 2006 and ANSI B74.12 standards)
FEPA P Sizes: P12 to P220 (in accordance with FEPA 43-1: 2006 standard)
Macrogrit Sizes:
FEPA F Sizes: F230 to F400 (in accordance with FEPA 42-2: 2006 standard)
FEPA P Sizes: P240 to P1200 (in accordance with FEPA 43-2: 2006 standard
